DFFT5 PowerEdge Dell Server Motherboard For Server Pc R520 8DM12 WVPW3 3P5P3

I'm Online Chat Now

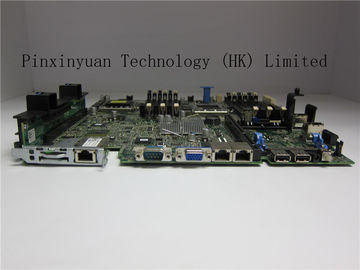

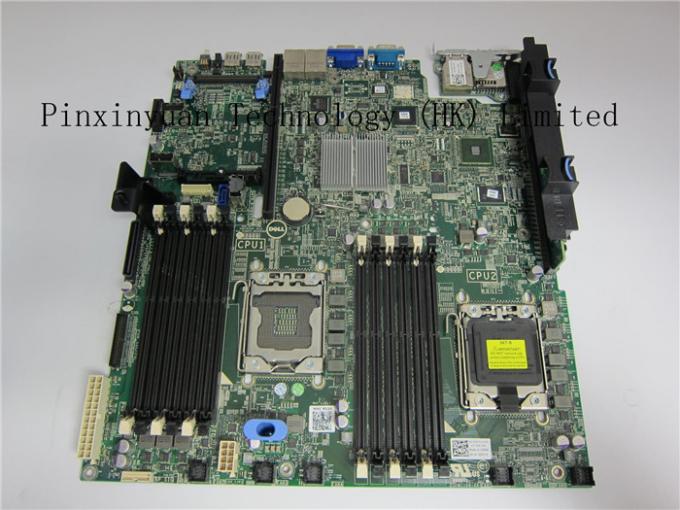

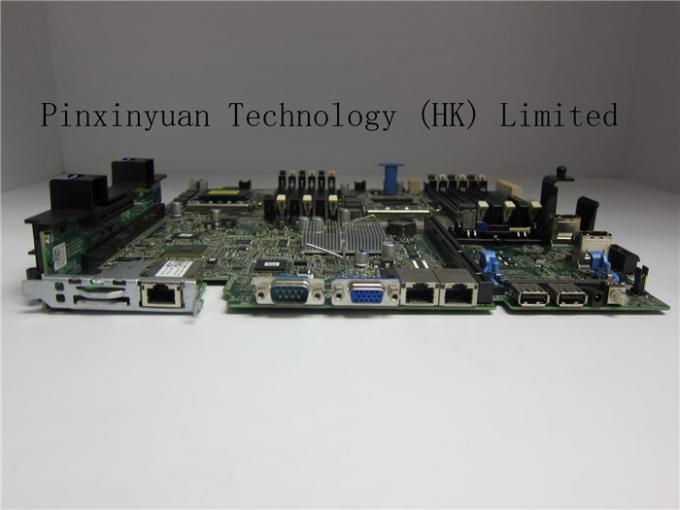

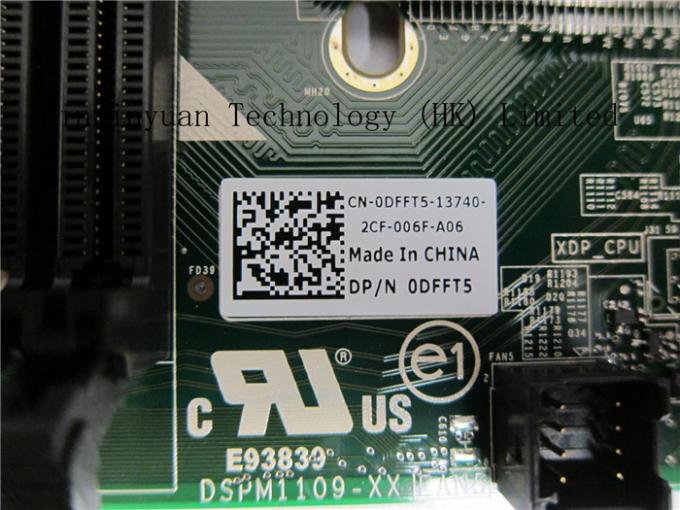

DFFT5 PowerEdge Dell Server Motherboard For Server Pc R520 8DM12 WVPW3 3P5P3

China DFFT5  PowerEdge Dell Server Motherboard  For Server Pc R520  8DM12 WVPW3 3P5P3 supplier
DFFT5  PowerEdge Dell Server Motherboard  For Server Pc R520  8DM12 WVPW3 3P5P3 supplier DFFT5  PowerEdge Dell Server Motherboard  For Server Pc R520  8DM12 WVPW3 3P5P3 supplier DFFT5  PowerEdge Dell Server Motherboard  For Server Pc R520  8DM12 WVPW3 3P5P3 supplier

Large Image :  DFFT5 PowerEdge Dell Server Motherboard For Server Pc R520 8DM12 WVPW3 3P5P3

Product Details:

Brand Name: DELL
Model Number: DFFT5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: CONTACT
Delivery Time: 3-4 working days
Payment Terms: L/C, D/A, D/P, T/T
Contact Now
Detailed Product Description
Brand: DELL Part Number:: DFFT5
Socket Type:: LGA 1356 (server) Model:: R520

DFFT5 DELL PowerEdge R520 server motherboard 8DM12 WVPW3 3P5P3


Product Description

Item Name: DFFT5 DELL PowerEdge R520 server motherboard 8DM12 WVPW3 3P5P3
Part Number: DFFT5
Compatible DELL™ R520 SYSTEM BOARD
Internal interconnect Intel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0GT/s



Processors Intel® Xeon® processor E5-2400 and E5-2400 v2 product families





COMPATIBILITY: R520

SPECS: See bellow

INCLUDED: R520 SYSTEM BOARD
PART NUMBER: 4FHWX 51XDX 3P5P3 VRJCG WVRWJ

CONDITION: ALTHOUGH THE PRODUCT IS NEW SEALED, IT IS MARKED AS MANFUFACTURE REFURB









DELL™ R520 SYSTEM BOARD



Processors Intel® Xeon® processor E5-2400 and E5-2400 v2 product families


Processor sockets 2


Internal interconnect Intel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0GT/s


Cache 2.5MB per core; core options: 4, 6, 8. 10


Chipset Intel C602


Memory1 Up to 384GB (12 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s


I/O slots

4 PCIe slots:

With 2 processors:

• 1 x16 PCIe slot with x16 bandwidth, 3.0,

half-length, half-height

• 1 x16 PCIe slot with x8 bandwidth, 3.0,

full-length, full-height

• 2 x16 PCIe slots with x8 bandwidth, 3.0,

half-length, full-height

With 1 processor:

• 1 x8 PCIe slot with x4 bandwidth, 2.0, half-length, halfheight

• 1 x16 PCIe slot with x8 bandwidth, 3.0, full-length, fullheight

• 2 x8 PCIe slots with x4 bandwidth, 3.0, half-length, fullheight


RAID controller

Internal controllers: PERC S110 (SW RAID), PERC H310, PERC H710, PERC H710P

External HBAs (RAID): PERC H810

External HBAs (non-RAID): 6Gbps SAS HBA

Embedded NIC Broadcom® 5720 dual-port 1Gb LOM


I/O adapter options

1Gb Ethernet adapters

10Gb converged Ethernet adapters

10Gb Ethernet adapters

FC16/FC8/FC4 HBAs


Availability

High-efficiency, hot-plug, redundant power supplies; DC power supply; hot-plug hard drives; TPM; dual internal SD

support; fan fault tolerance; optional bezel; information tag; ECC memory, interactive LCD screen; ENERGY STAR®

compliant; extended power range; switch independent partitioning


Remote management Basic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade), iDRAC7 Enterprise (upgrade),

8GB vFlash (upgrade), 16GB vFlash (upgrade)


Systems management

IPMI 2.0 compliant

Dell OpenManage Essentials

Dell OpenManage Mobile

Dell OpenManage Power Center

Dell OpenManage Integrations:

• Dell OpenManage Integration Suite for Microsoft

System Center

• Dell OpenManage Integration for VMware® vCenter

Dell OpenManage Connections:

• HP Operations Manager, IBM Tivoli® Netcool®, and CA

Network and Systems Management

• Dell OpenManage Plug-in for Oracle® Database

Manager


Operating systems

Microsoft Windows® Server® 2012 R2 (includes Hyper-V®)

Microsoft Windows Server 2012 (includes Hyper-V)

Microsoft Windows Server 2008 R2 SP1, x64 (includes

Hyper-V)

Microsoft Windows Small Business Server 2011

Novell® SUSE® Linux Enterprise Server

Red Hat® Enterprise Linux


Virtualization options:

Citrix® XenServer®

VMware vSphere® ESXi™

Red Hat Enterprise Virtualization®



Overview:The system board -- or motherboard -- is key when it comes to your server system. It acts as the nervous system to your server, connecting all of the components together so that they can successfully work with one another. The Dell  DFFT5 System Board is such a part, and the one you need for your Dell PowerEdge XL R620 Server.

The Dell DFFT5 ensures that the Dell R620 server's parts run effectively and are compatible. The PowerEdge XL R620 itself is a powerful server packed with performance, impressive I/O capabilities, and a flexible, scalable network with balanced performance and systems management.

The Dell DFFT5 System Board is a brand new system board intended for use with the Dell PowerEdge XL R620, and is guaranteed fully functional. Purchase with confidence, as the photos above depict the exact representation of these Motherboards, and is bundled with our 90 Day Warranty.



DFFT5  PowerEdge Dell Server Motherboard  For Server Pc R520  8DM12 WVPW3 3P5P3

DFFT5  PowerEdge Dell Server Motherboard  For Server Pc R520  8DM12 WVPW3 3P5P3

DFFT5  PowerEdge Dell Server Motherboard  For Server Pc R520  8DM12 WVPW3 3P5P3
